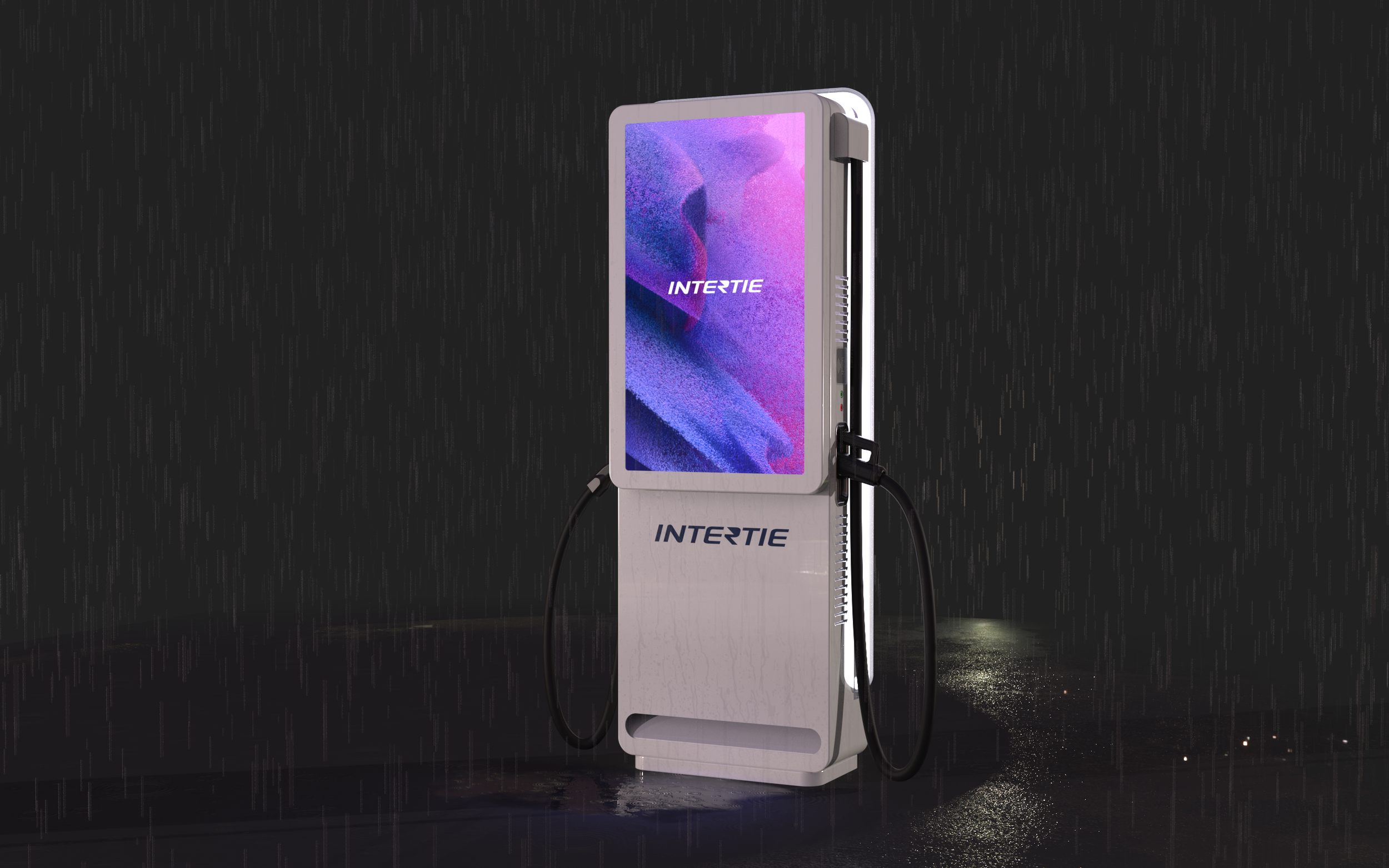

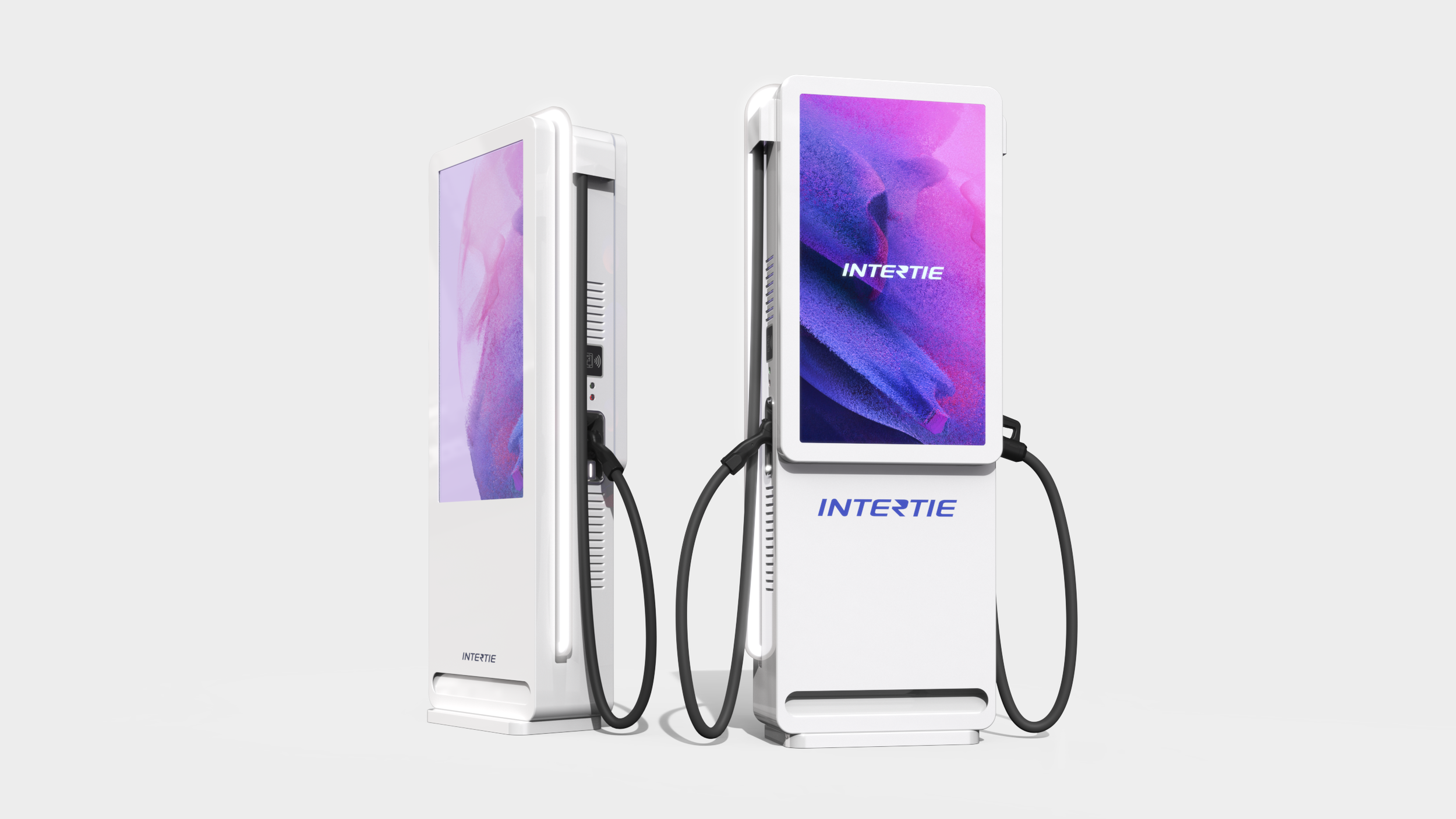

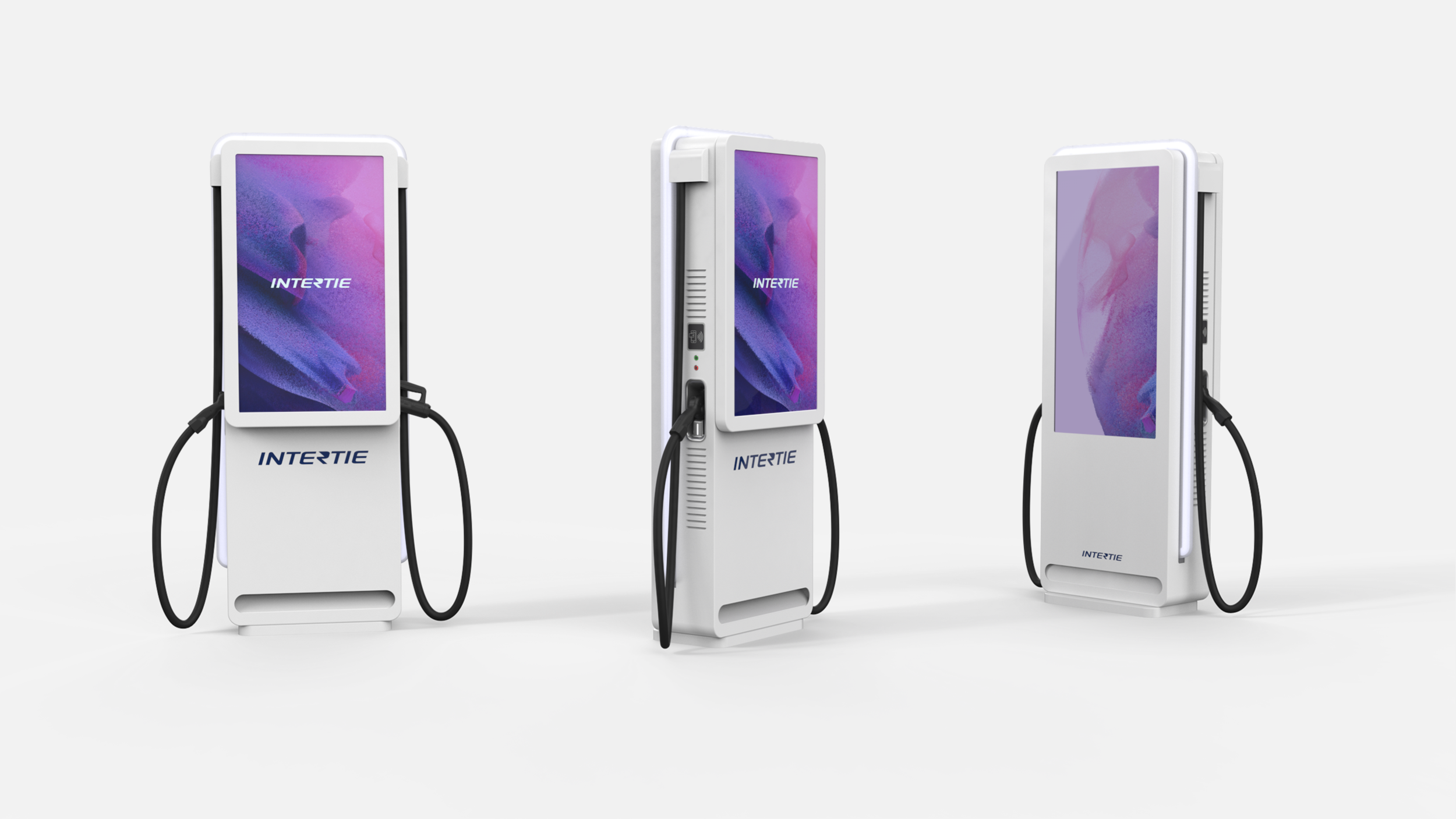

INTERTIE SUPER-FAST EV CHARGER
Partnered with Intertie to create the new DC fast charger with underground power storage. The underground power storage saves space for owners and provides secure battery storage.
The power system combines large capacity, durable battery, and energy storage with intelligent optimized power flow. The Intertie DC fast charger gives electric vehicle drivers a convenient 100-mile charge in 10 minutes for the same price as gasoline. Also, it has the power to charge trucks and buses.
The California Electric Vehicle Infrastructure Project (CALeVIP) is certificated (page 57).
MY ROLE
As a designer on the team, I was responsible for concept exploration, early prototyping process and CAD modeling. As well, I assisted with the final implementation of visualization and documentation all the while communicating with the client and engineer.
Client
Intertie, via Deap design
Role
Lead industrial Designer
Phase
Research / Concept Development / Design Development / Manufacturing Support / Visualization
Credits
Erich (Design Direction)
Status
2018 Design / 2022 Release

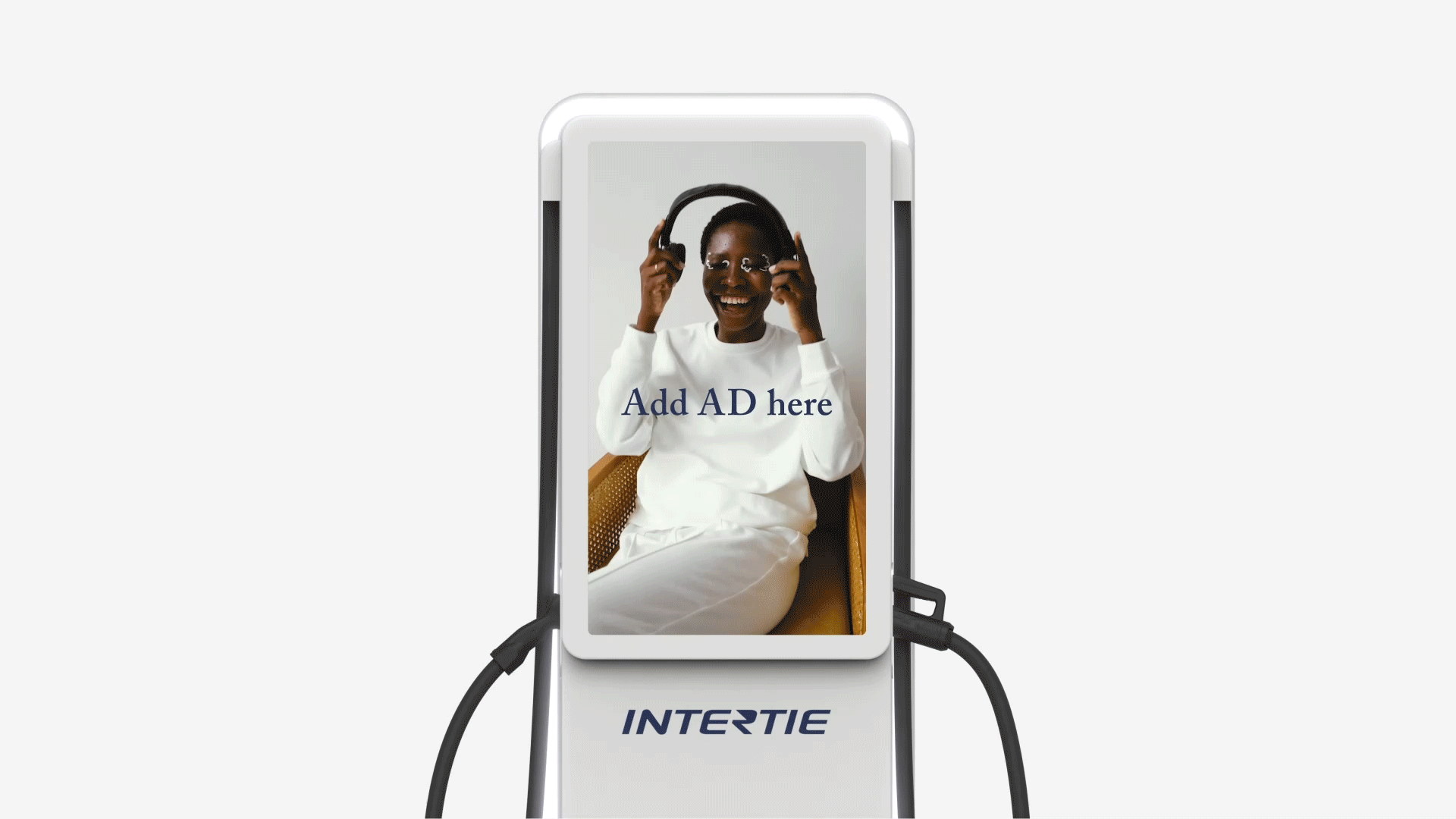

55” Outdoor Media Display
Share customized content while drivers wait for their car to charge.

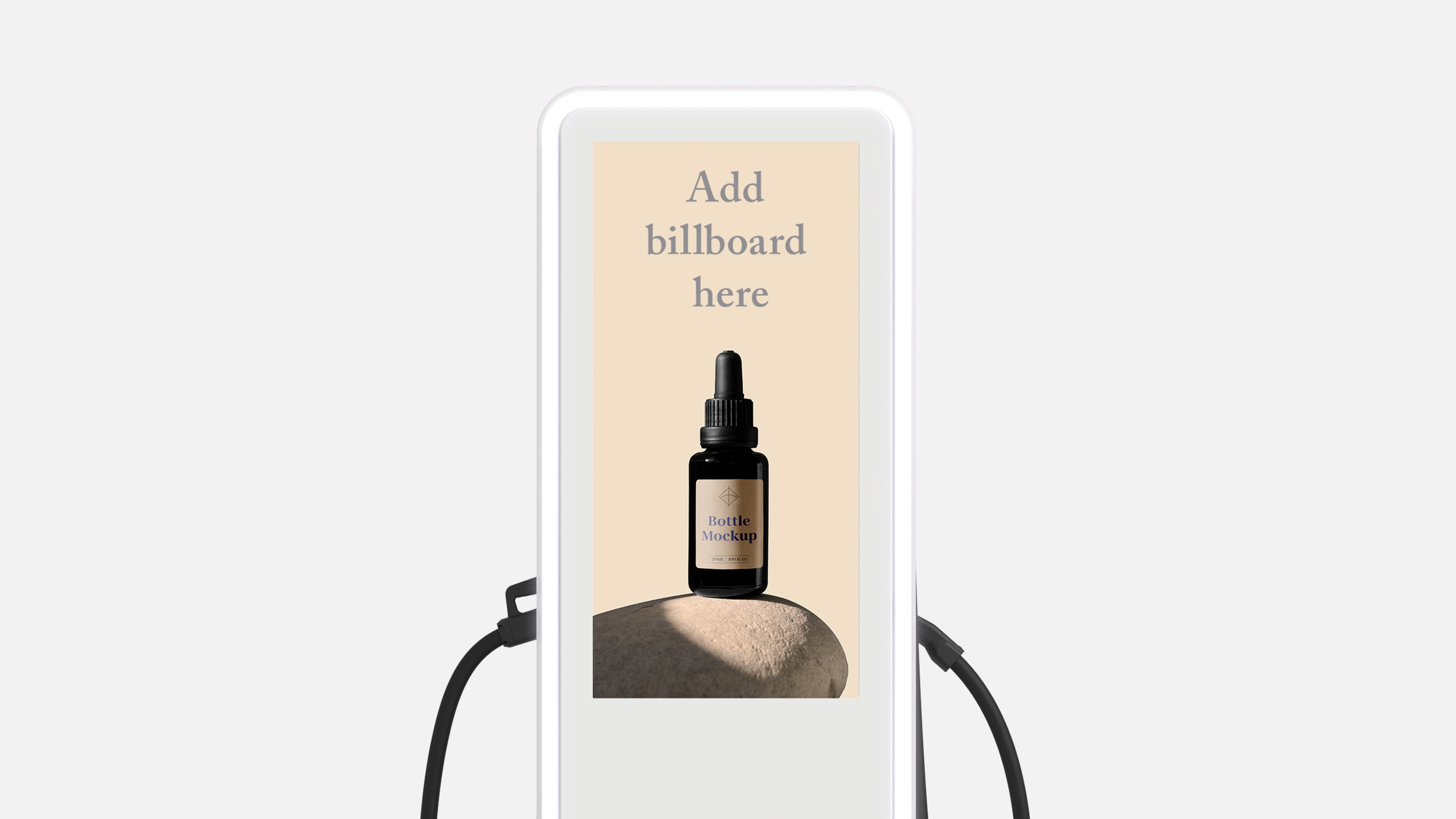

Backside Signage Advertisement
Make profits from renting the backside display.

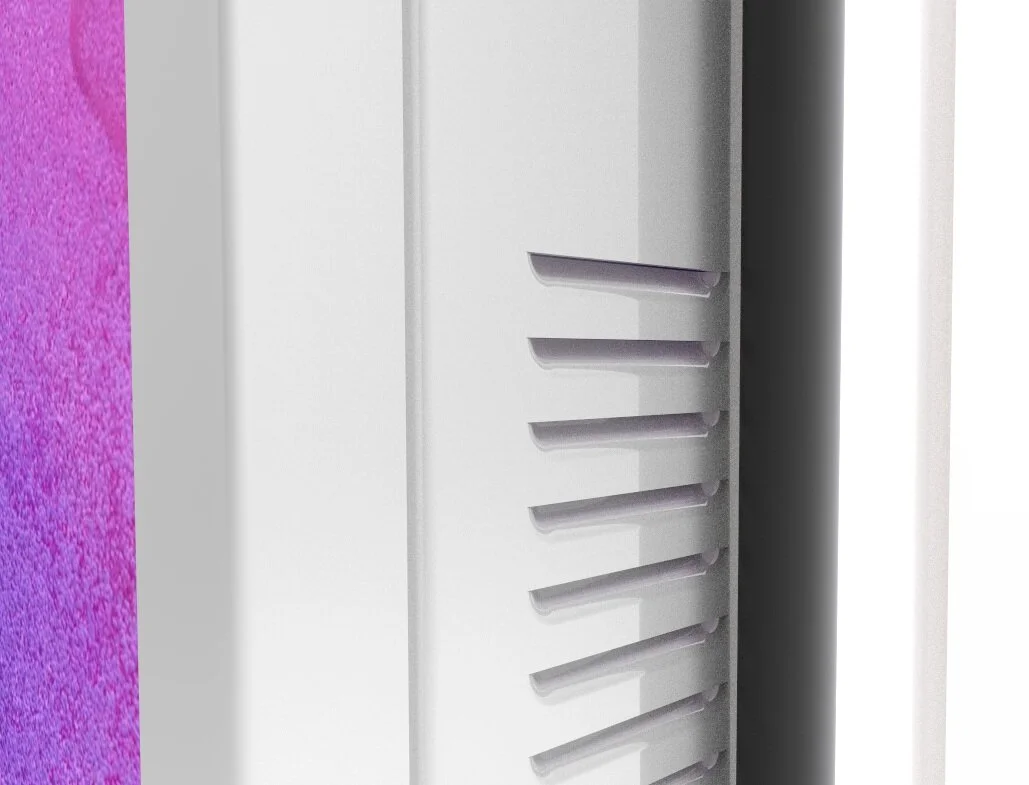

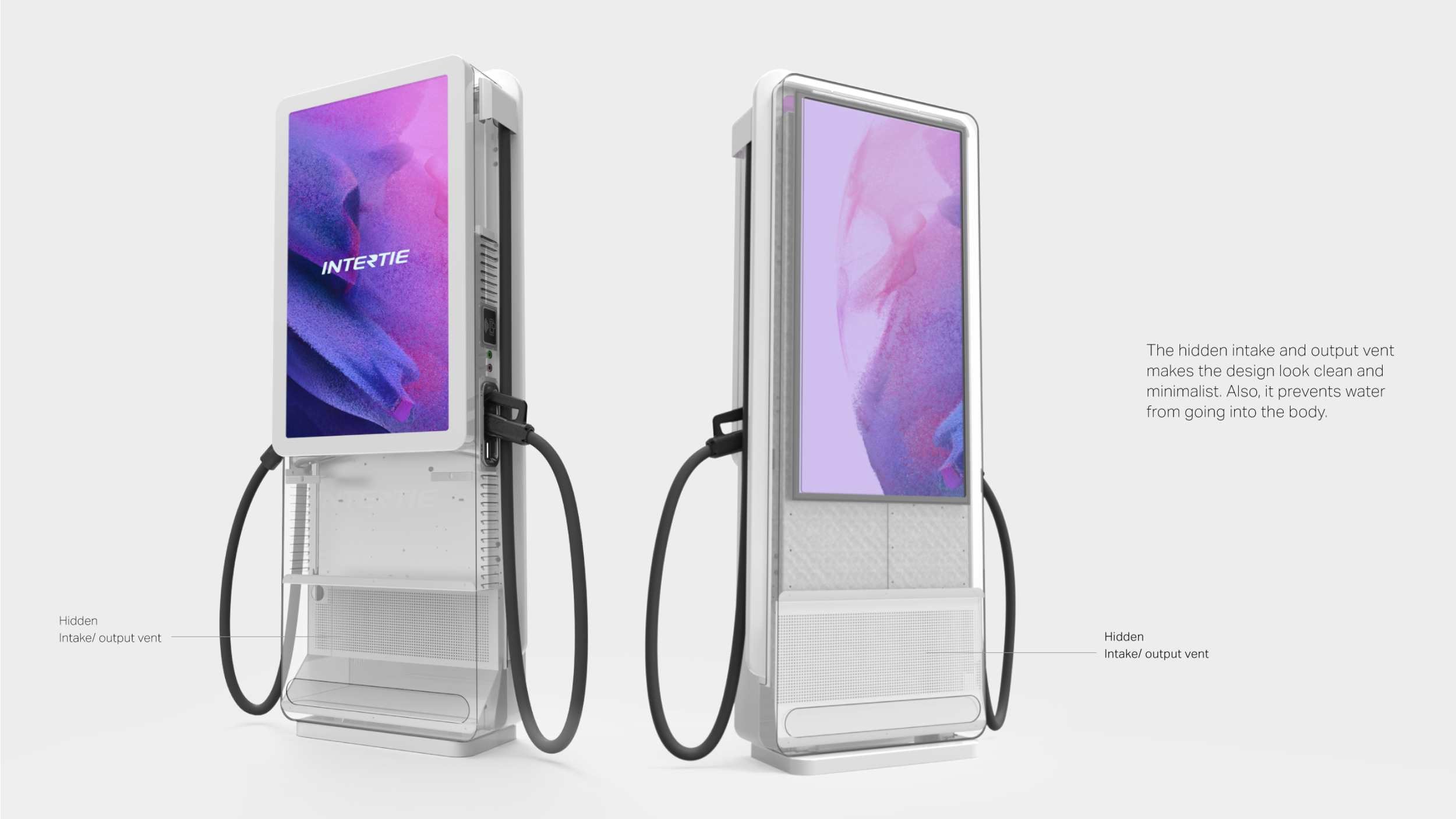

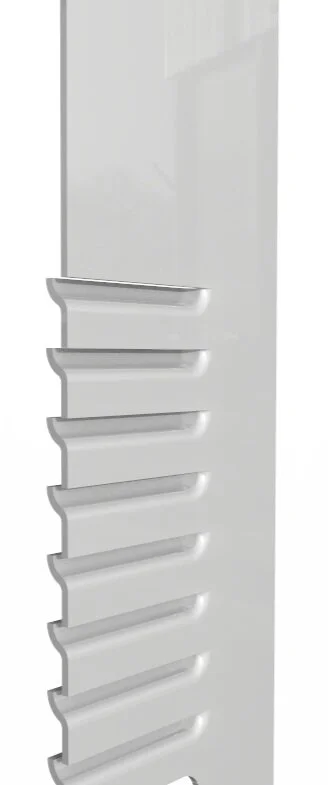

The unique vent shape lets air in and out and while blocking water from leaking into the body.

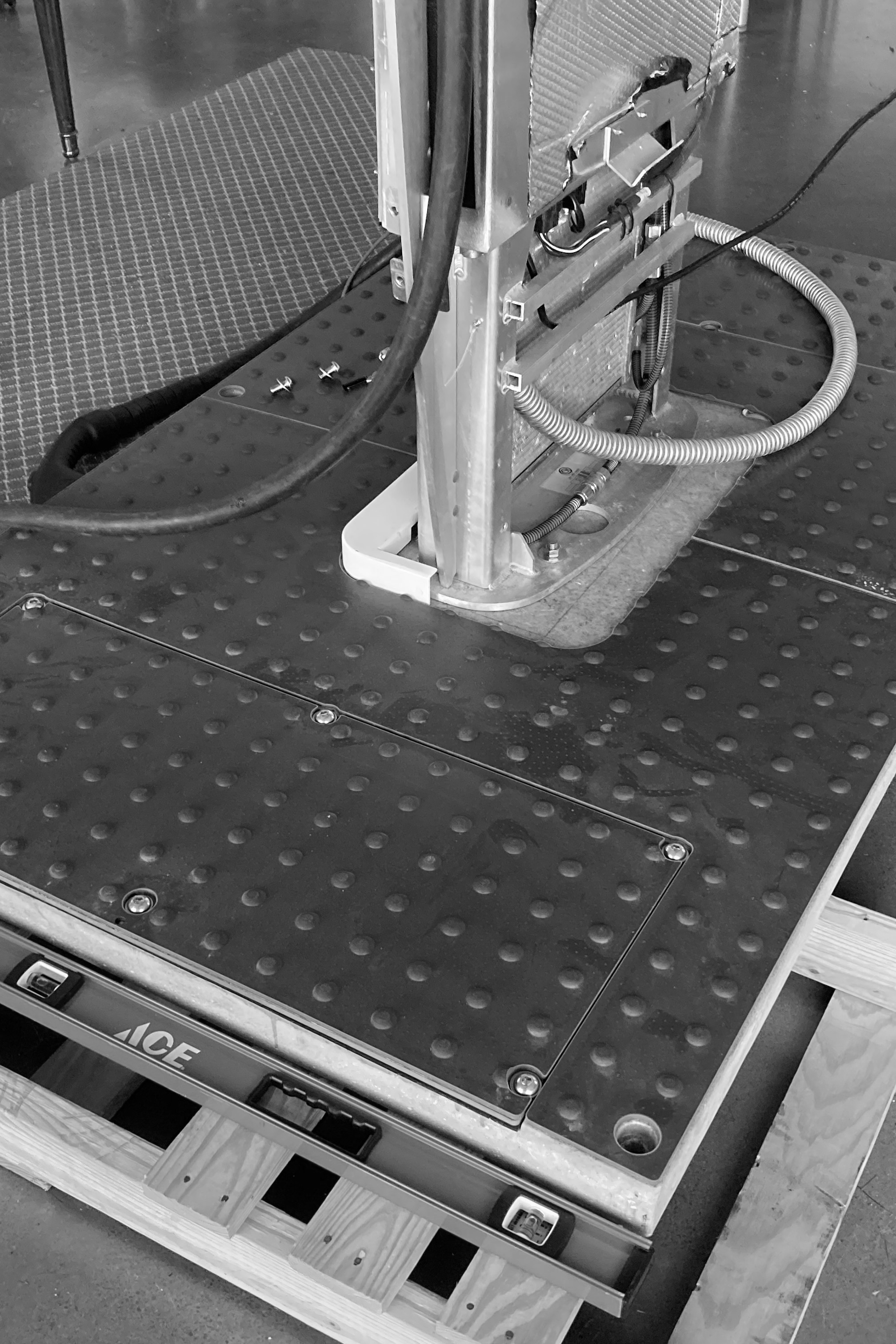

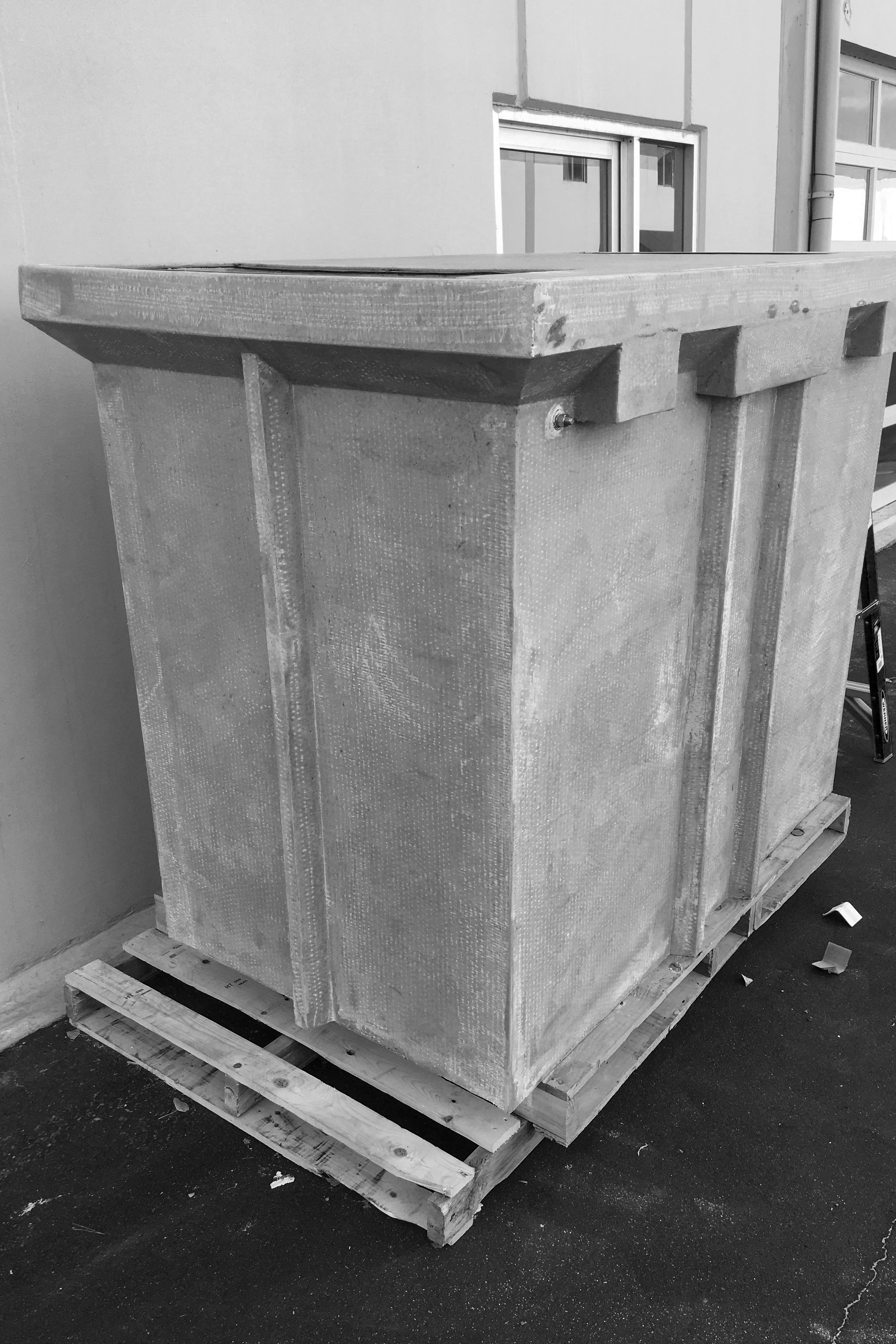

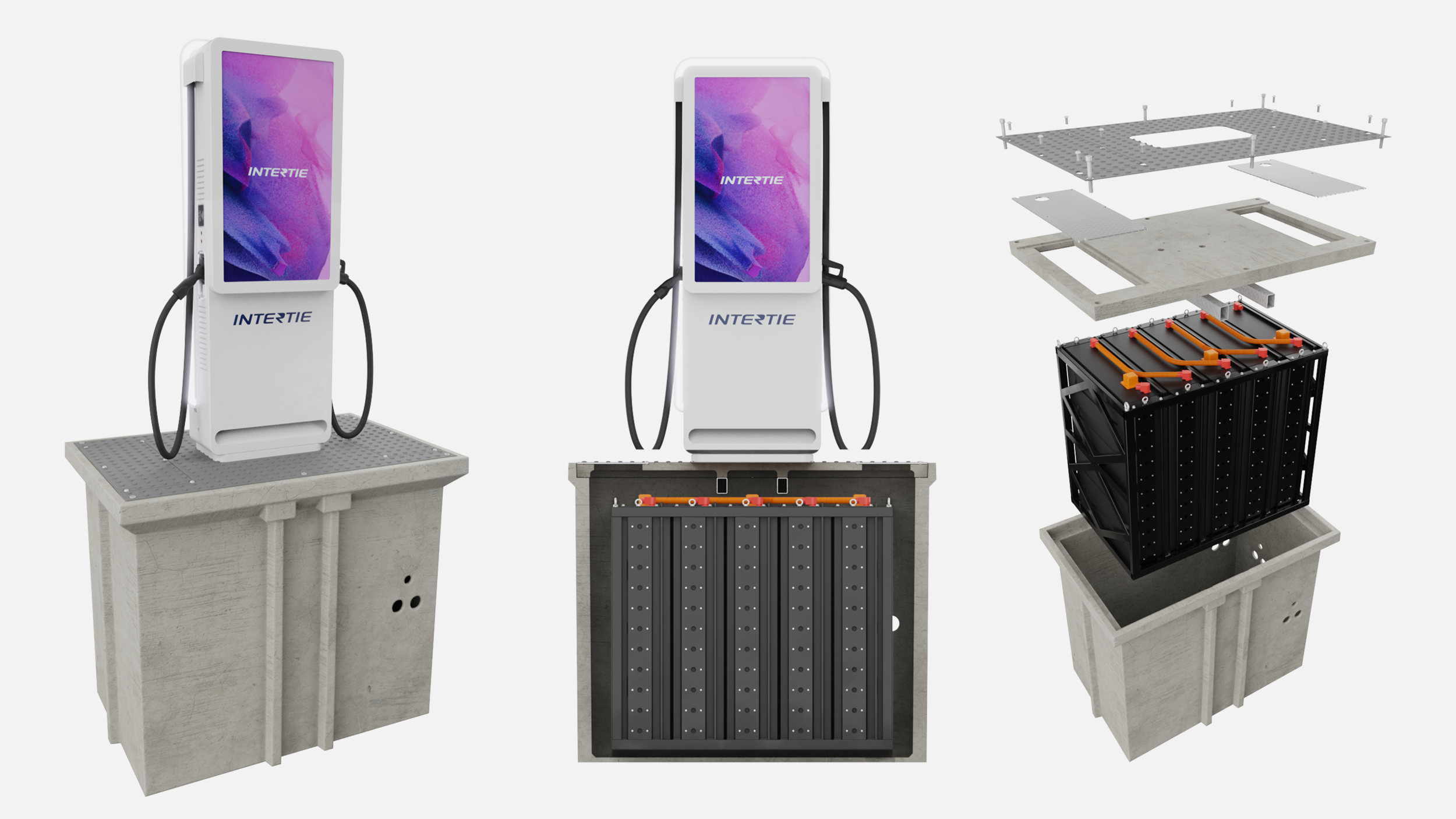

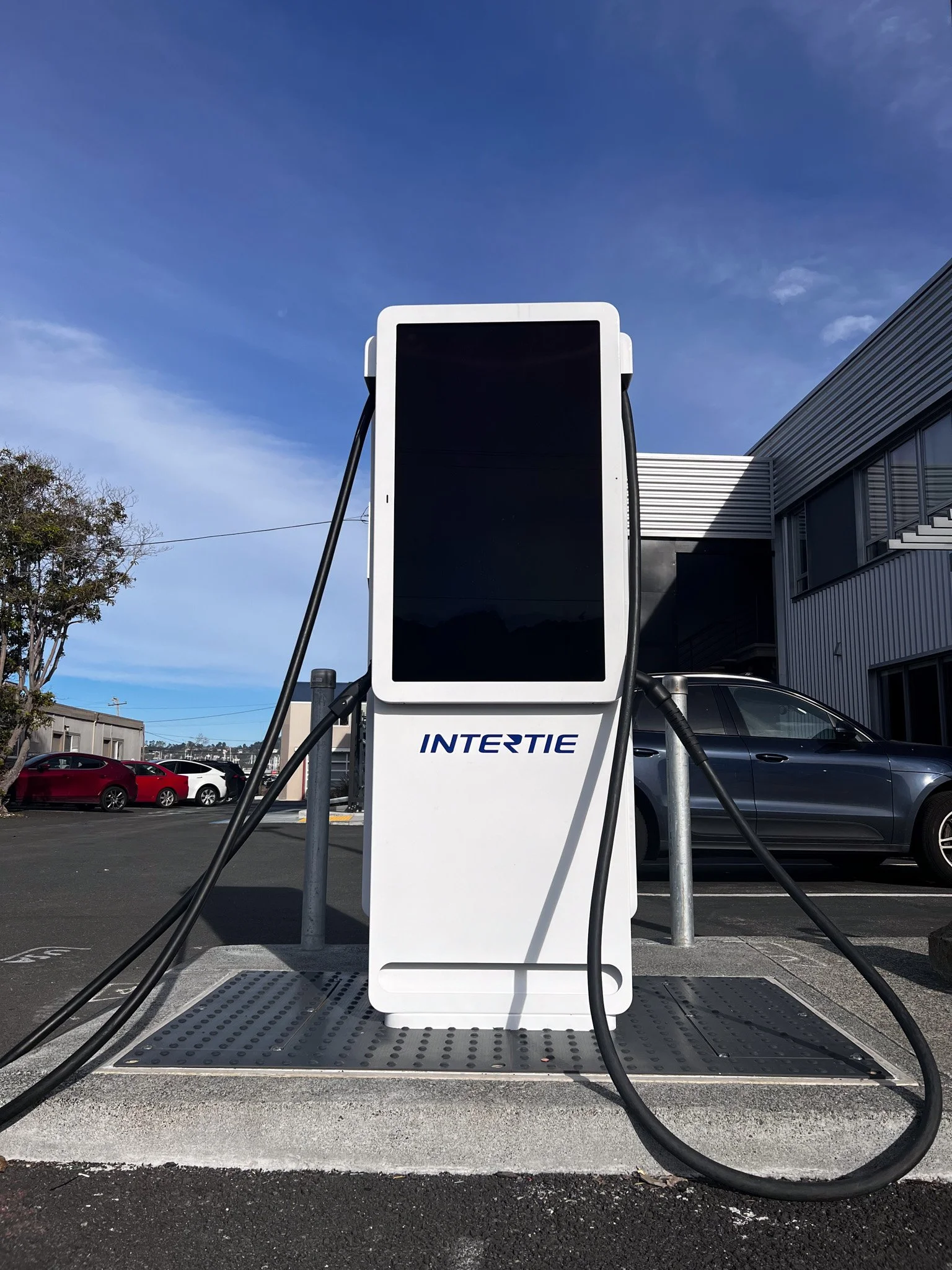

Underground Battery Box
- Save space with no power cabinet on the ground.
- Safe battery storage.

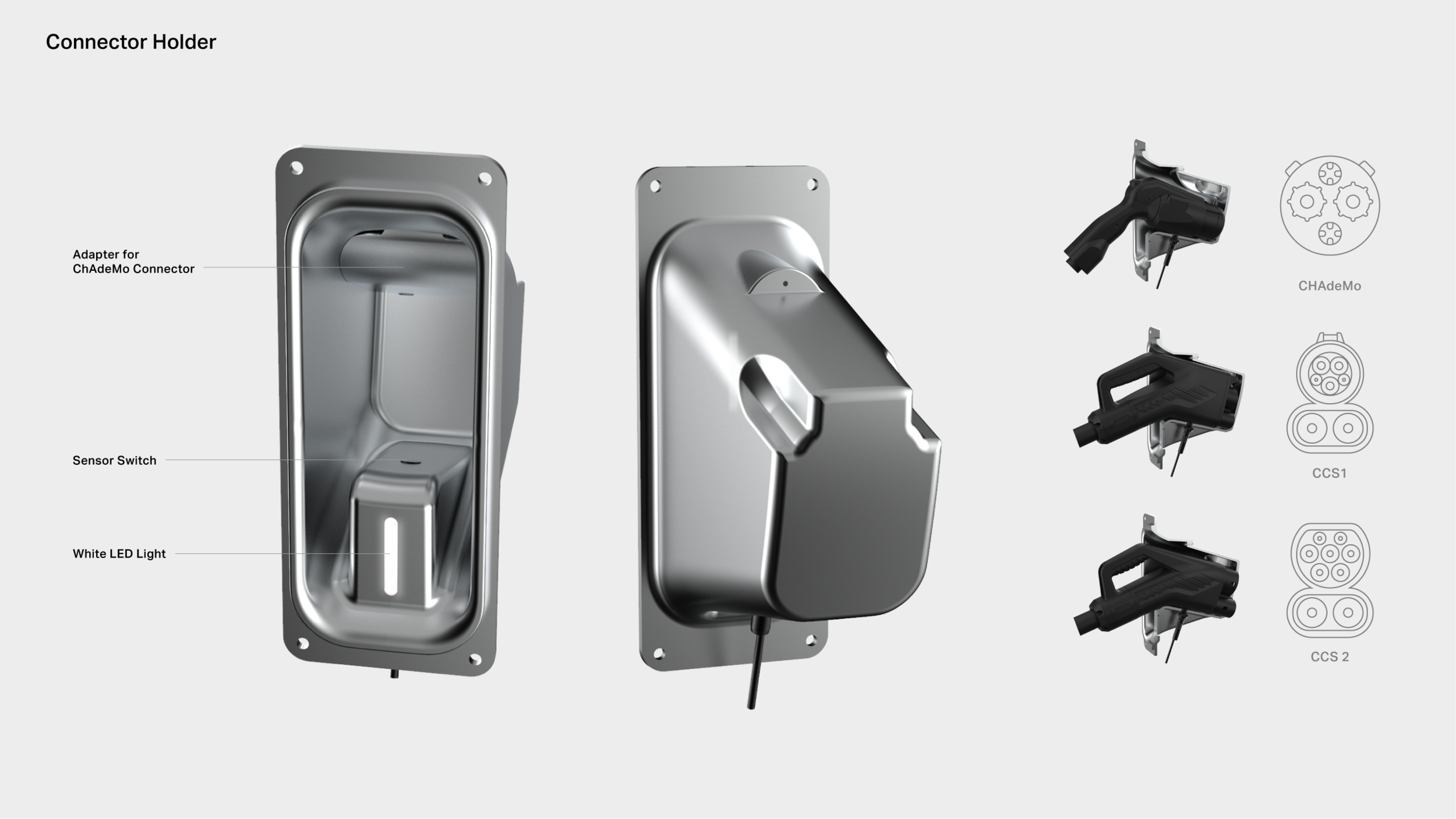

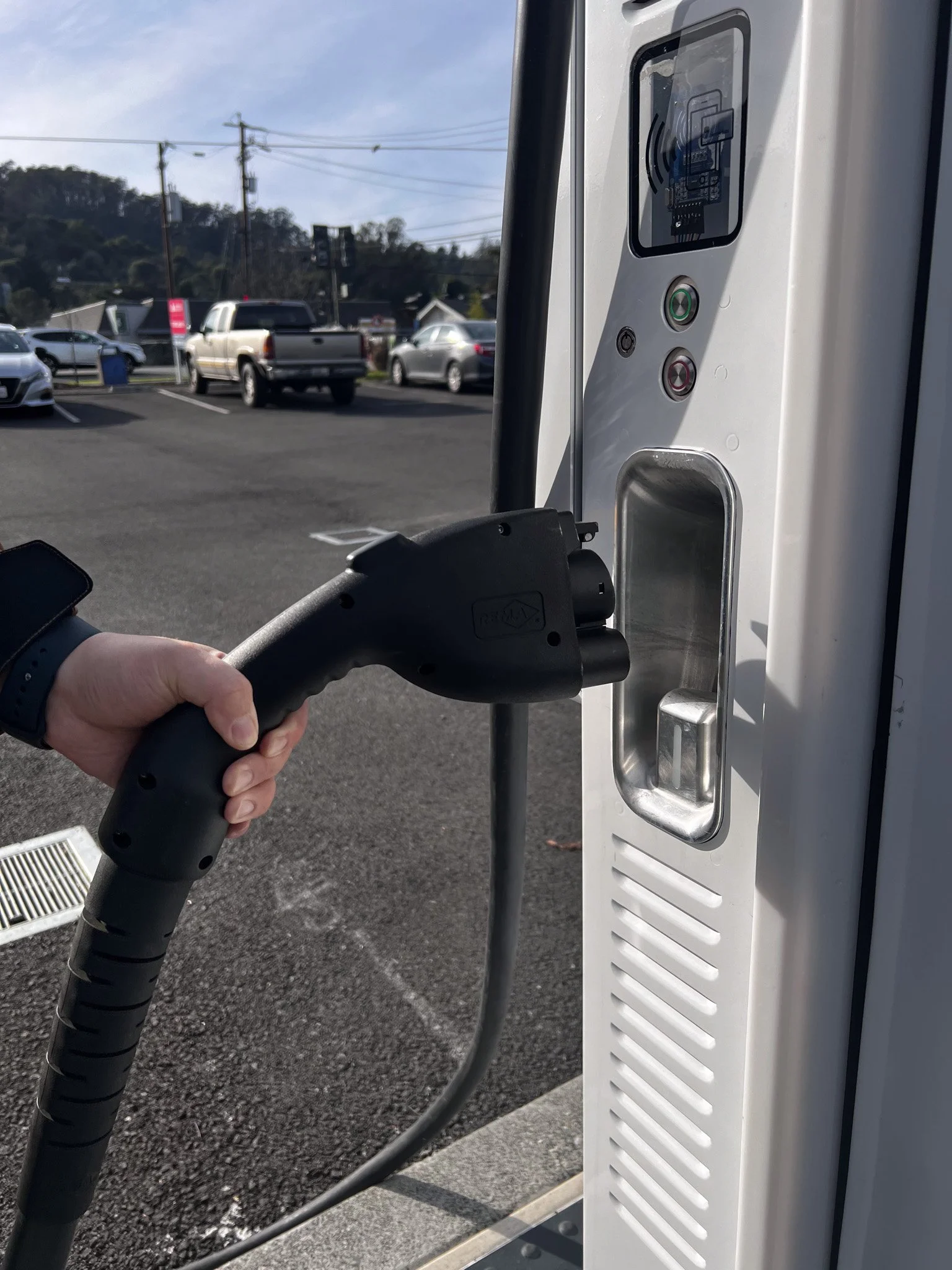

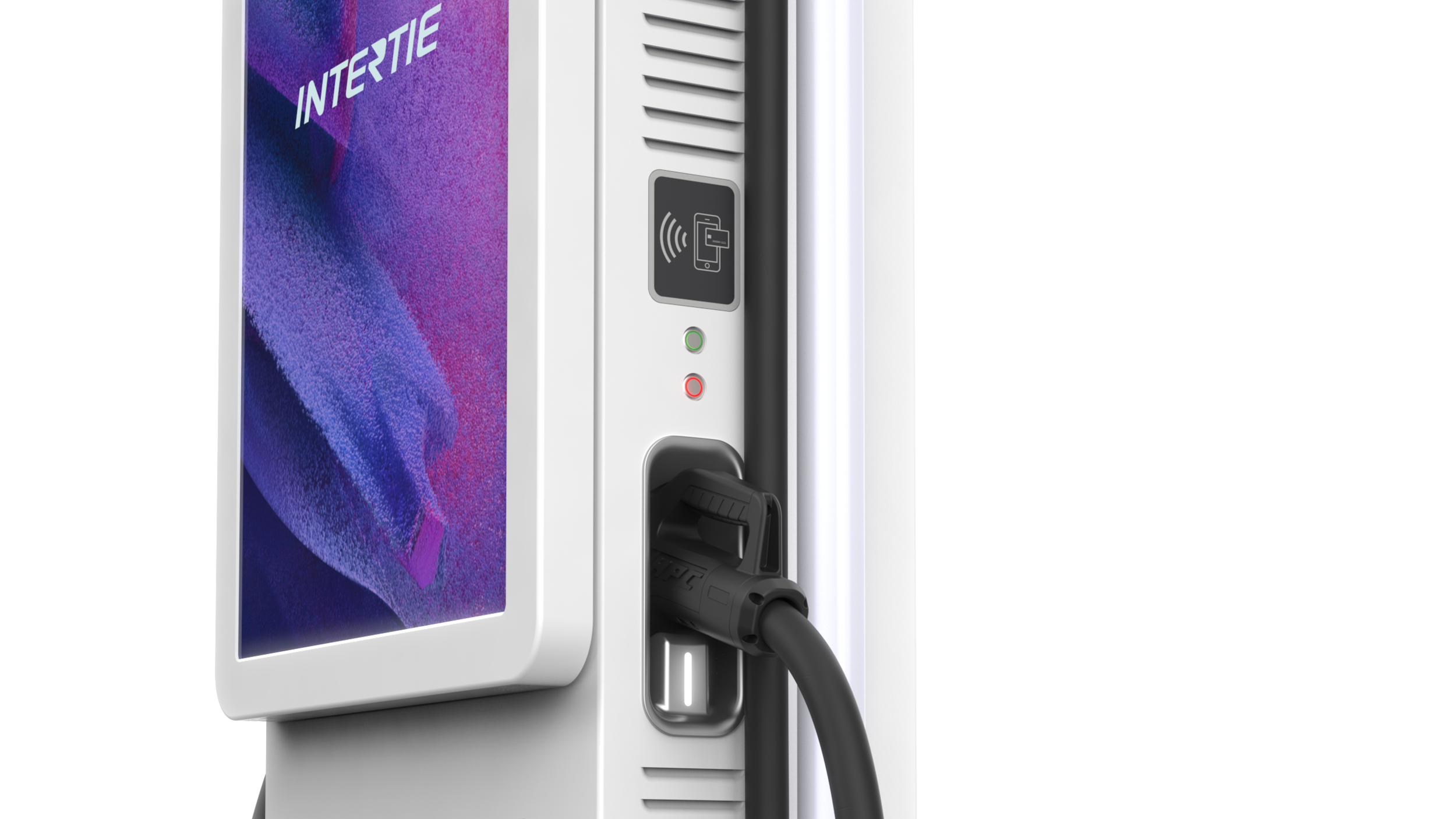

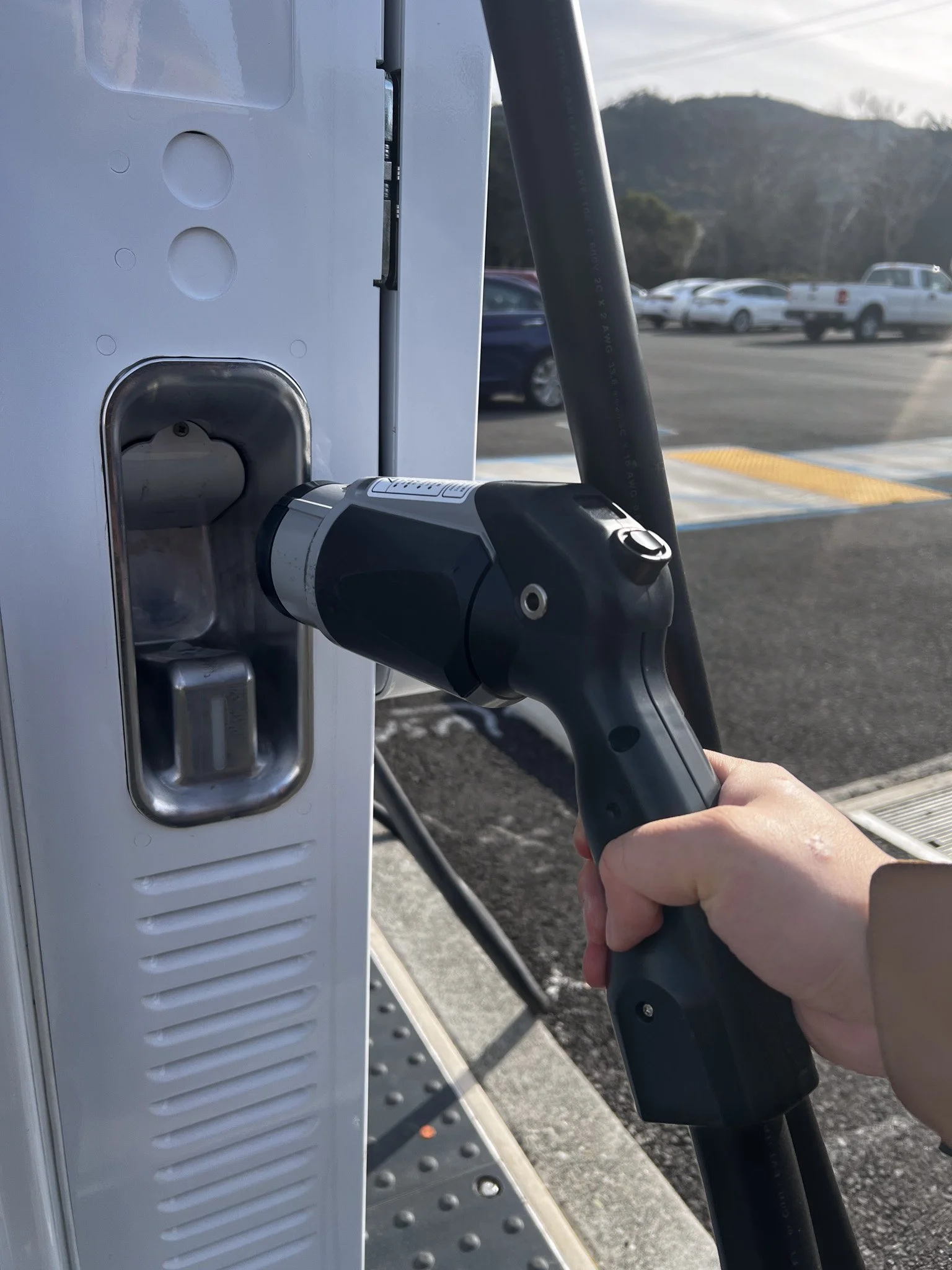

The connector holder is suitable for various connectors.
The design fits different connectors: CCS1, CCS2, and Chademo.
